Aluminium Bifold Doors

Technical Specifications

Please see below for a list of technical specs of our aluminium bifolding door system. For further technical details or questions please contact us.

  • Made to measure: 90cm to 800cm wide; up to 2.5m high
  • Custom-made to fit exactly
  • Wide range of colours – white as standard – your colour choice
  • 40 different fold options – from single door to multi-door – your selection
  • Safety glass options: clear toughened (internal), “K” glass (external), obscured, laminated, antisun, argon
  • Georgian bar styles
  • Handle and hinge options, including stainless steel, white or to match the door colour
  • Optional integrated blinds in a choice of colours
  • Low threshold for internal use – no need to step over
  • Weatherproof cill for external use
  • Draught-proof and weather-proof doors
  • Thermally broken architectural aluminium for external use
  • Hidden castor system and in-line handles for added elegance
  • Slim profile – doors fold flat for maximum viewing area
  • Single key option for multiple doors
  • Shoot-bolt locking system into both upper and lower tracks for greater security
  • Inside only handles for added security
  • No ugly sliding mullion or ugly heavy, black rubber seals
  • Manufactured to order, here in the UK

Technical Drawings

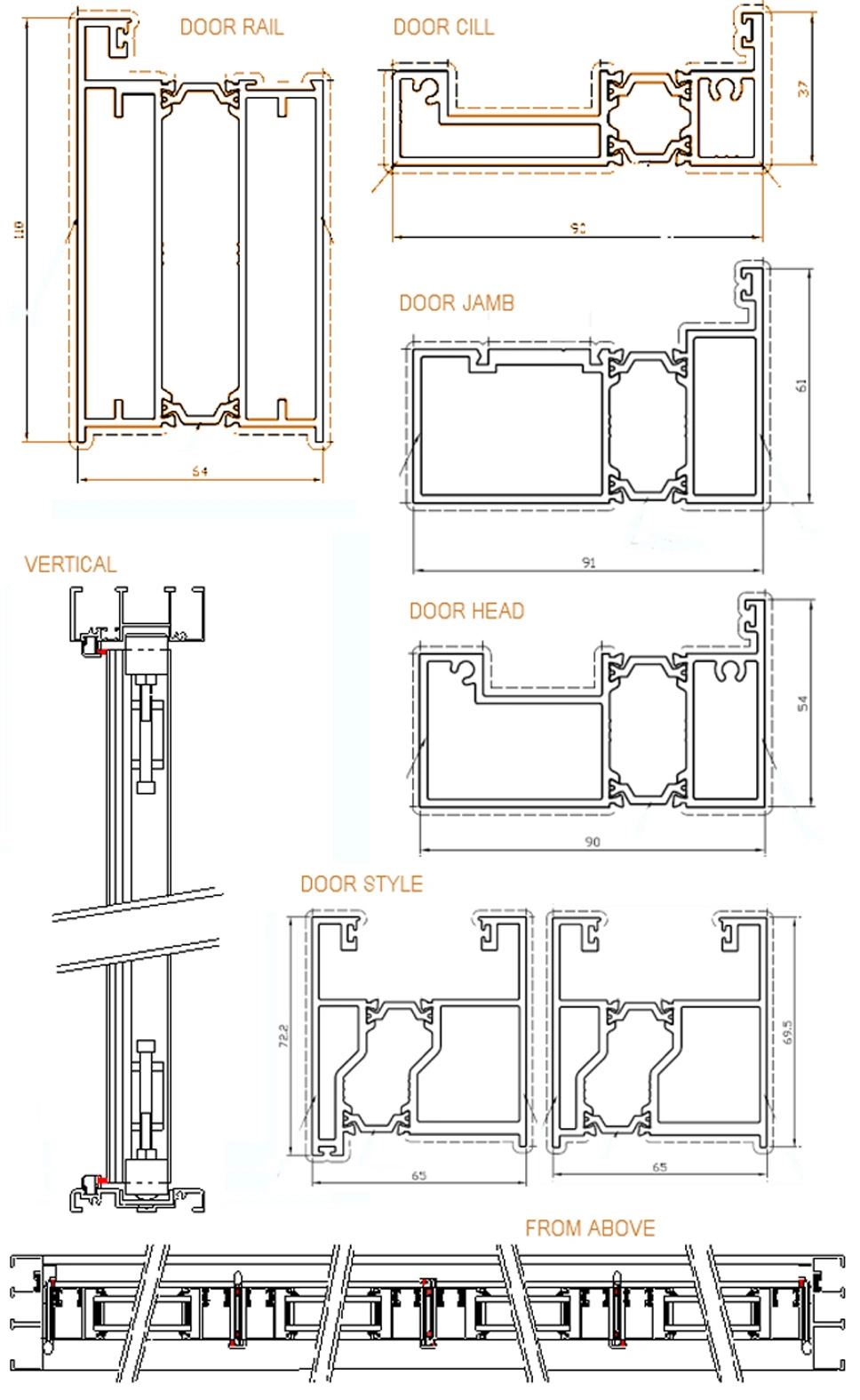

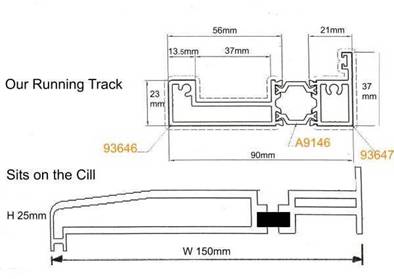

Aluminium bifold doors technical drawing: overview Aluminium bifold doors technical drawing: cill
